MICRO SD CARD SLOT UP TO 256 GB
Two-Way Audio
You can easily communicate in real-time through the app. Whether you’re speaking or listening, the audio feature allows for seamless, two-way communication, ensuring that both parties can hear and respond instantly.
Alarms
Arm and activate your alarm relays, deterrence lights, and sirens instantly through the Smart Guardian app. With just a few taps, you can ensure your property is fully secured, deterring potential intruders and triggering an immediate response.
Discover moreRemote Setup
With remote setup, you can complete your entire system configuration directly through the app, eliminating the need for connecting to a separate monitor or physical device. Our app gives you full control, ensuring a smooth, hassle-free setup experience without any extra equipment.
Learn more
Instant Notifications
Receive real-time alerts for various events, including alarm triggers, human and vehicle detections, movement, face recognition matches, hard disk errors, and video loss. Tailor your notifications to ensure you’re always updated on what’s happening.

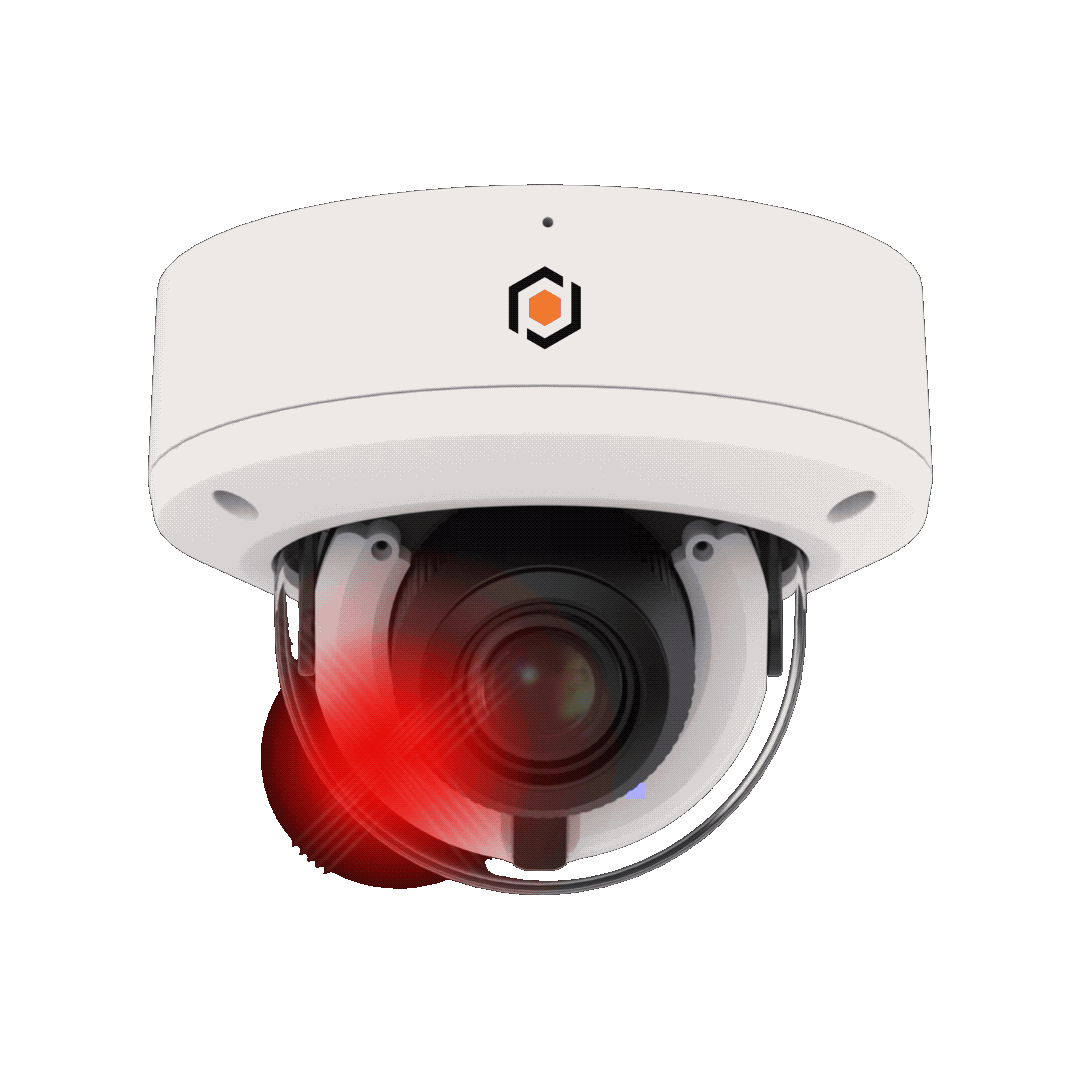

Discover morePRODUCT SPECIFICATIONS
| OPERATIONAL | |
| IR LED | 2 |
| Warmlight | 2 |
| Red & Blue Light | 2 (1 Red & 1 Blue) |
| IR Viewable Length | Up to 45m |
| Warmlight Viewable Length | Up to 25m |
| Type Of Complementary Light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Levels) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Day&Night Mode/Full Color Mode/Schedule |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | 1 input, 1 output |
| Audio | Built-in microphone & Speaker; 1 input (RCA), 1 output (RCA) |
| Custom Voice | Yes |
| Hardware Reset | Yes |
| Smart Features | Rare Sound Detection (SD) , Perimeter Intrusion Detection (PID), Face Detection (FD), Stationary Object Detection (SOD), Crowd Density Detection (CD), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Queue Lenght Detection (QD), Heat Map (HM), Cross Counting (CC), License Plate Detection (LPD) |
| NETWORK | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Mainstream @30fps 5MP(2880x1620), 4MP(2560X1440) 3MP(2304x1296), 1080P(1920x1080), 720P(1280x720) Substream @30fps 720P(1280x720),VGA(640x480),QVGA(320x240) Mobile Stream @30fps VGA (640x480), QVGA (320x240) |
| Video Quality Adjustment | 256Kbps ~ 8Mbps |
| Bitrate Control Method | CBR/VBR |
| IP | IPv6 |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Security | IP address filter;complicated password; Authenticated username and password |
| Application Programming Interface | ONVIF( Profile S/G/T) |
| Web Viewer | IE10/11, Safari V12.1 above, Firefox V.52 above Google chrome V.57 above, Edge V.79 above |
| GENERAL | |
| Operating Conditions | -35 ~ +60°C/less than ≤ 95% RH |
| Ingress Protection | IP67 |
| Input Voltage / Current | D12V/POE (IEEE802.3af) |
| Power Consumption | max 4.8W; POE (48V) |
| Color/material | White/Metal |
| Dimension (WXHXD) | Ø148.97x115.01mm |
| Weight | Appr. 960g |
| ENVIRONMENTAL | |
| Protection Rating | IK10 |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8-12mm |
| Max. Aperture Ratio | F No. 1.2 |
| Angular Field Of View | 113(W)-35(T)° V |
| Min. Object Distance | 1.5m |
| Lens Type | Motorized Ø16.7 |
| VIDEO | |
| Imaging Device | 1/2.7” |
| Effective Pixels | 5MP 2880 (H) x 1620 (V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.002lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
DOWNLOAD
| DATA SHEET | |
| EN_DATASHEET_XD6ZTV2812IP5MP-AI_2024-10-01.pdf | Download |
| FR_DATASHEET_XD6ZTV2812IP5MP-AI_2024-10-01.pdf | Download |
| FIRMWARE | |
| V31_Firmware_31.35.8.2.2_2022-04-18 | Download |
| V31_Firmware_31.35.8.2.2_2022-07-01 | Download |
| V31_Firmware_31.35.8.2.2_2022-10-25 | Download |
| V31_Firmware_31.35.8.2.3_2023-04-18 | Download |
| V31_Firmware_31.35.8.2.4.1_2024-08-08 | Download |
| V31_Firmware_31.35.8.2.4_2024-01-10 | Download |
| V31_Firmware_31.35.8.2.5_2023-06-05 | Download |
