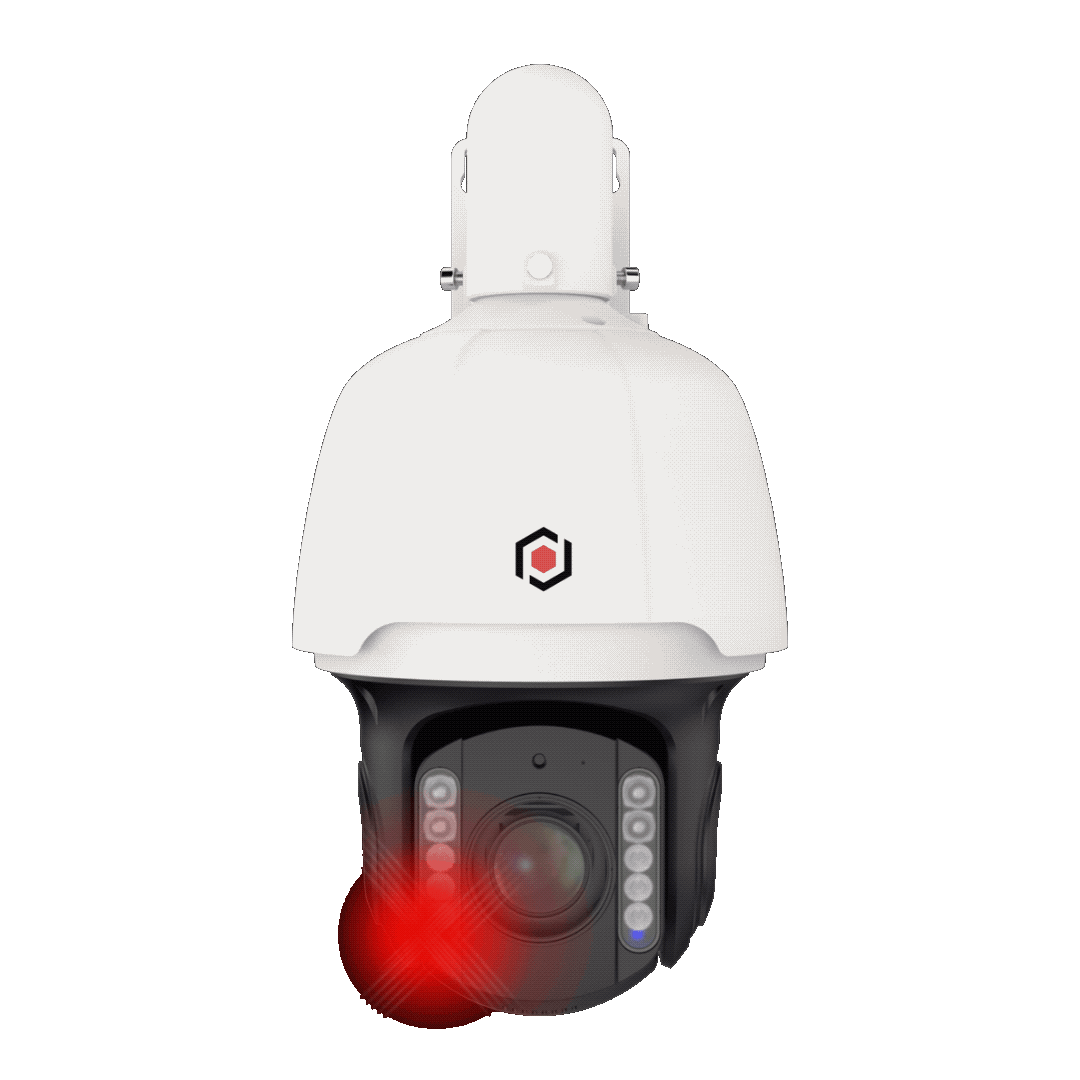

XPTZ37XIP8MP-AI-N
-
Deterrence Lights and siren
-
True WDR
-
8MP RESOLUTION
-
MICRO SD CARD SLOT UP TO 256 GB
-
SEE IN COLOR AT NIGHT
-
IMPACT RESISTANT
-
WATERPROOF & DUST-TIGHT
-
ALARM/AUDIO IN/OUT
-
TWO-WAY COMMUNICATION
-
AUTO-TRACKING
-
37X OPTICAL ZOOM 16X DIGITAL ZOOM
-
5.5-202MM LENS
-
IR UP TO 200M
Download the Smart Guardian App
Two-Way Audio
You can easily communicate in real-time through the app. Whether you’re speaking or listening, the audio feature allows for seamless, two-way communication, ensuring that both parties can hear and respond instantly.
Alarms
Arm and activate your alarm relays, deterrence lights, and sirens instantly through the Smart Guardian app. With just a few taps, you can ensure your property is fully secured, deterring potential intruders and triggering an immediate response.
Discover moreRemote Setup
With remote setup, you can complete your entire system configuration directly through the app, eliminating the need for connecting to a separate monitor or physical device. Our app gives you full control, ensuring a smooth, hassle-free setup experience without any extra equipment.
Learn more
Instant Notifications
Receive real-time alerts for various events, including alarm triggers, human and vehicle detections, movement, face recognition matches, hard disk errors, and video loss. Tailor your notifications to ensure you’re always updated on what’s happening.
Discover morePRODUCT SPECIFICATIONS
| CAMERA | |
| Slow Shutter | Yes |
| Zoom | 37 × optical, 16 × digital |
| OPERATIONAL | |
| Day & Night | IR cut filter |
| Video Bit Rate | 16 kbps to 16384 kbps |
| Image Setting | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| On-Board Storage | Built-in SD card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Alarm | 1 input, 1 output |
| Audio | 1 input (line in); 1 output (line out) |
| NETWORK | |
| Main Stream | 25 fps (3840 × 2160, 3072 x 1728, 2592 x 1944, 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 × 960, 1280 × 720); 60 Hz |
| Sub-Stream | 25 fps (1920 x 1080, 1280 × 720, 640 × 480, 320 × 240); 60 Hz |
| Video Compression | H.265+/H.265/H.264+/H.264 Sub-stream |
| Audio Compression | G.711alaw, G.711ulaw |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, RTMP |
| API | Onvif ( Profile S, Profile G, Profile T),Http API |
| Simultaneous Live View | Up to 20 channels |
| User/Host | administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter,control timeout settings |
| Client | VMS |
| Web | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| GENERAL | |
| Power | 36VDC / IEEE802.3bt(PoE++) |
| Operating Conditions | -40 °C to 65 °C (-22 °F to 149 °F) Humidity 90% or less (non-condensing) |
| Demist | Yes |
| Material | Metal |
| Dimensions | Ø 206.4 mm × 337.3 mm (Ø8.13” × 13.27”) |
| Weight | 1035g) |
| Protection | IP67, IK10 |
| THERMAL MODULE | |
| Image Sensor | 1/1.8” progressive scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Aperture | Max. F1.6 |
| OPTICAL MODULE | |
| Shutter Speed | 1/5 s to 1/20000 s |
| Supplement Light Range | up to 25 m, IR |
| Supplement Light Type | Hybrid (IR and White Light) |
| INTEGRATION | |
| Reset | Yes |
| LENS | |
| Focal Length | 5.5 mm to 202 mm |
| FOV | 60° to 2.31° (wide-tele) Vertical field of view |
| Focus | Auto, semi-auto, manual |
| PTZ | |
| Movement Range(PAN) | 360° |
| Movement Range(TILT) | -20° to 90° (auto flip) |
| Pan Speed | 200°/s |
| Tilt Speed | Configurable from 0.6° to 90°/s, preset speed 100°/s |
| Proportional Pan | Yes |
| Presets | 255 |
| Patrol Scan | 4 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Power-Off Memory | Yes |
| Park Action | Preset, pattern scan, auto scan, patrol scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan |
| IMAGE | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 120 dB |
| DEFOG | Digital defog |
| Image Stabilization | DIS |
| Privacy Mask | 8 privacy masks |
| SNR | > 52 dB |
| VIDEO | |
| Min. Illumination | 0.0005Lux @ (F1.6, AGC ON), B/W |
| Third Stream | 25 fps ( 640 × 480, 320 × 240); 60 Hz |
| H.264 TYPE | Baseline Profile/Main Profile/High Profile |
| H.265 TYPE | Main Profile |
| Region Of Interest (ROI) | 8 fixed regions for each stream |
| EVENT | |
| Basic Event | Motion detection, video tampering alarm, alarm input and output |
| Deep Learning Function | Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection |
| Smart Tracking | auto-tracking |
| Alarm Linkage | Upload to FTP, send email, trigger alarm output, trigger recording |
| INTERFACE | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Built-In Microphone | 1 built-in microphone |
| Built-In Speaker | 1 built-in speaker |
| AUDIO | |
| Audio Bit Rate | 64 Kbps (G.711) |
| Audio Sampling Rate | 8 kHz |
| Environment Noise Filtering | Yes |
